MG-8080AL Online AB Glue Mixing & Dispensing Machine

Principle Description
AB glue are stored in two containers independently. Glue A and B are filled into the mixing pipe separately through precise calculation of two metering pumps based on needs. At the same time, work-pieces are arrayed on the designed

Product introduction
Technical Parameters
Video display

Principle Description

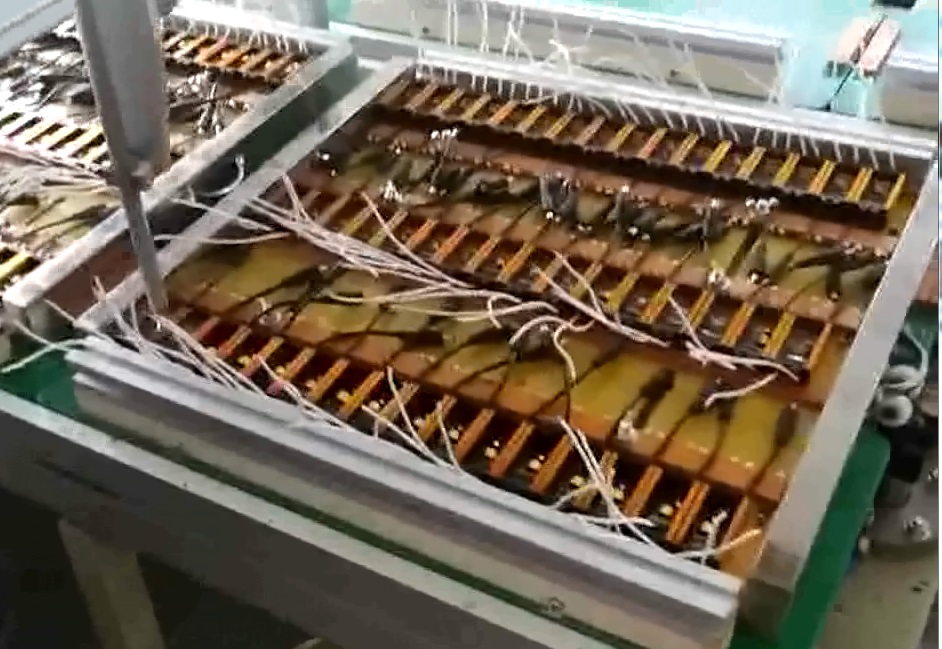

AB glue are stored in two containers independently. Glue A and B are filled into the mixing pipe separately through precise calculation of two metering pumps based on needs. At the same time, work-pieces are arrayed on the designed transfer board and the transfer board is driven to the dispensing station by the transmission chain or belt. The three-axis mechanical hands drive glue nozzle to conduct rated glue dispensing by programmed instructions. After dispensing, the transfer board flows to the next station and new board is in position. The whole system operates in cycle.

Machine Features

♦Full-automatic for all steps: metering, proportioning, mixing, dispensing...;

♦Equipped two 304 stainless steel glue containers for storing glue A and glue B separately to prevent the glue getting dry for longtime no use;

♦The mechanical part of 3-axis equipped high precision linear motion module, high accurate positioning and repeat positioning;

♦Touch screen UI with hand programming controller, easy to learn and operate;

♦Equipped chain or belt transmission line, or customize for different plant site environment or process craft design;

♦Provide customized fixture and gluing multi-head for different work-pieces.

Suitable Glue:

Double-component glue, such as organic silicone, epoxy, PU, acrylate etc.

Applications:

Water-proof battery, solid-state relay, capacitor, rectifier, mutual inductor, filter, surge protection device, aquarium water pump, power-save module, electromagnetic clutch etc.

Technical Parameters

Model	MG-8080AL
Working Range(XYZ)	800800100 mm(customization is optional)
Three-axis Moving Speed	0～500mm/sec
Transmission Line Speed	0～200mm/sec
Repeat Accuracy	±0.02mm
Mixing Ration	100:100～100:10 (1:1~10:1) Adjustable
Metering Method	Precise Gear Pump or Rotary-plunger Pump
Mixing Method	Static Mixing or Dynamic Mixing (based on glue nature)
Glue Dispensing Volume	0.3～30 ml/s
Mixing Accuracy	±1%
Glue Flow Accuracy	±1%
Glue Container Capacity	30L 304 Stainless Steel Barrel
Glue Viscosity	Max≤20000CPS
Glue Additive Proportion	MAX≤100(Glue):100(Additive)(1:1)
Glue Additive Size	Max≤400tsp
Control Mode	PLC + Handhold Teaching Programming Case + Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 units, 4000 points/unit
Transmission Method	Stepping Motor + Synchronous Belt +Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V/50HZ/2000W(stirring, vacuuming, heating not included)
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension(WDH)	1680x1200x1600 mm
Weight	About 350KG
Optional Functions	Glue container stirring, preheating, vacuum degassing, self-cleaning
